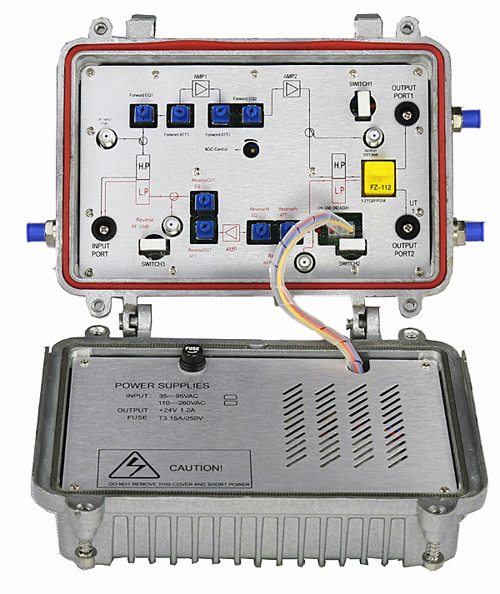

Bidirectional Trunk Amplifier


The equipment adopts surface mounting technology with elegant appearance and reliable performance.The main component of bi-directional amplifier reverse path is modular structure. It can be realized the bi-directional upgrade conveniently.

Product overview
-High-quality diplex filter, split points optional
-Forward amplifying circuit adopt two modules to enlarge. Low-noise push-pull amplifier module,
make sure the noise indicator of equipment; later stage uses power double module.
-Adjustable attenuator and equalizer in forward and reverse path,equipped with two balancing attenuation adjustment, construction easier.
-RF test port in reverse path (-20dB).
-Two outputs, Changeable tap or splitter.
-High-reliability transformer power supply.
-220V/60V AC

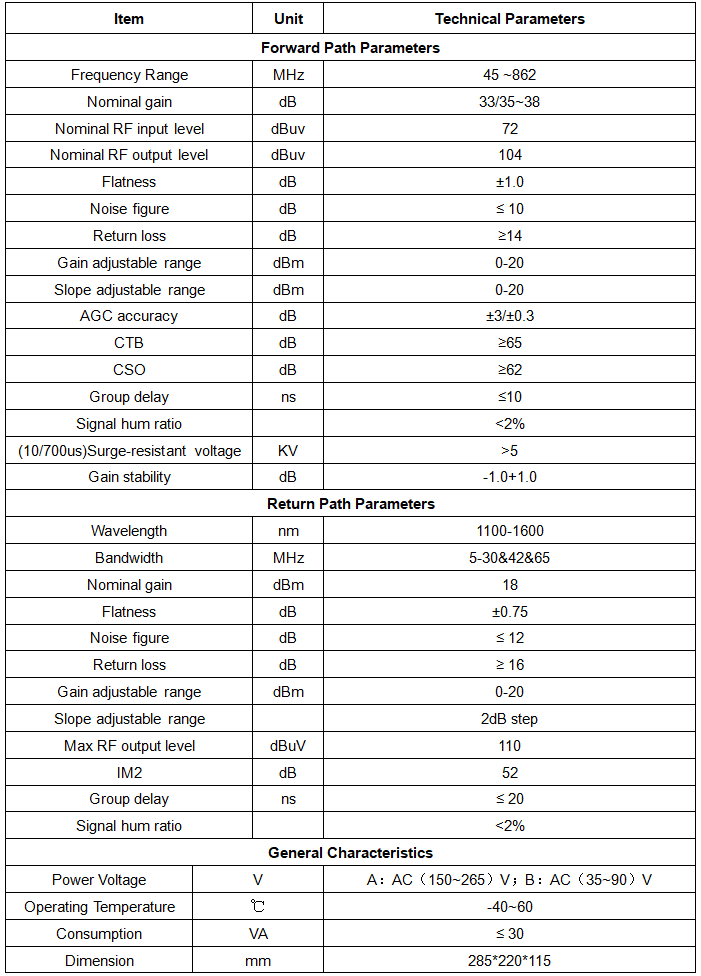

Size chart
