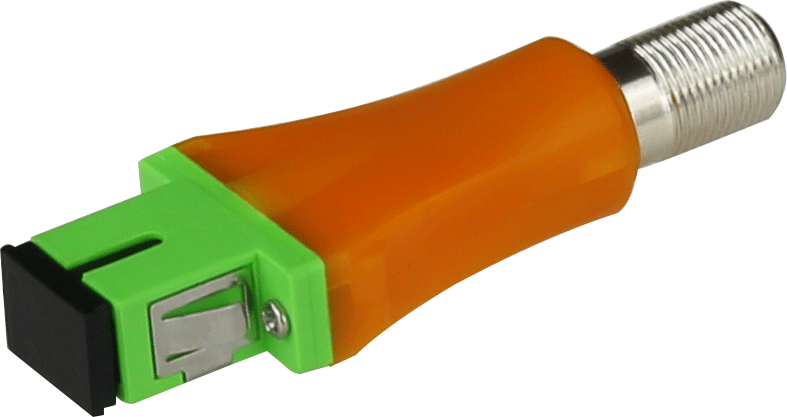

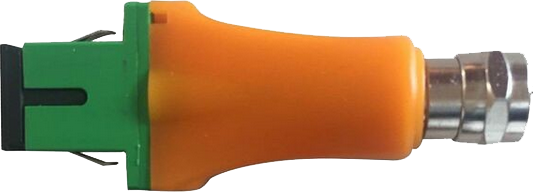

Passive MINI Optical Receiver

OP-ORP1


The passive FTTH optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH network optical fiber subscriber access terminals, enabling analog or digital signals to enter the home.

Product overview
  • High quality plastic shell;
  • The minimum digital signal meets -10dBm reception, and the minimum analog signal meets -7dBm reception;
  • No power, no consumption;
  • SC/APC&FC/APC&SC/PC&FC/PC optical connector;
  • Output level>61dBuv (PIN=0dBm)

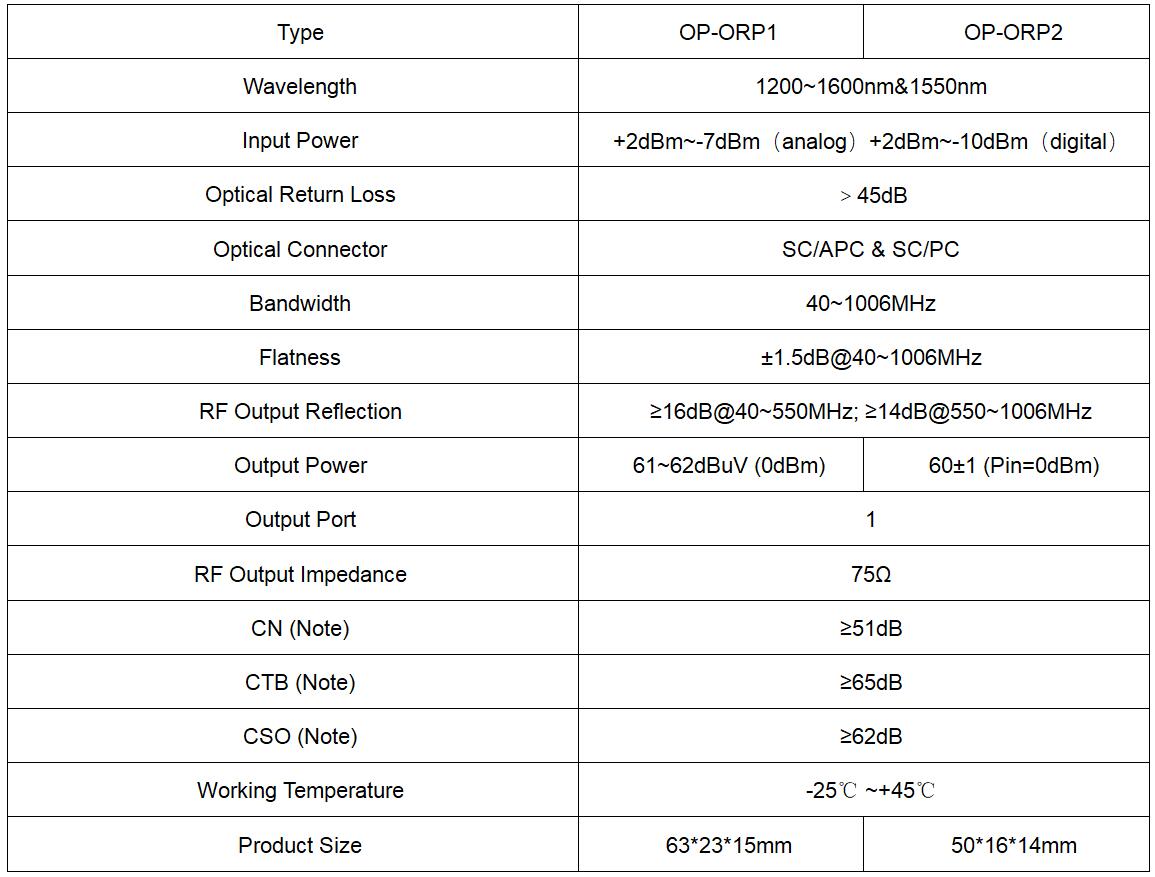

Parameter
Size chart
Download
