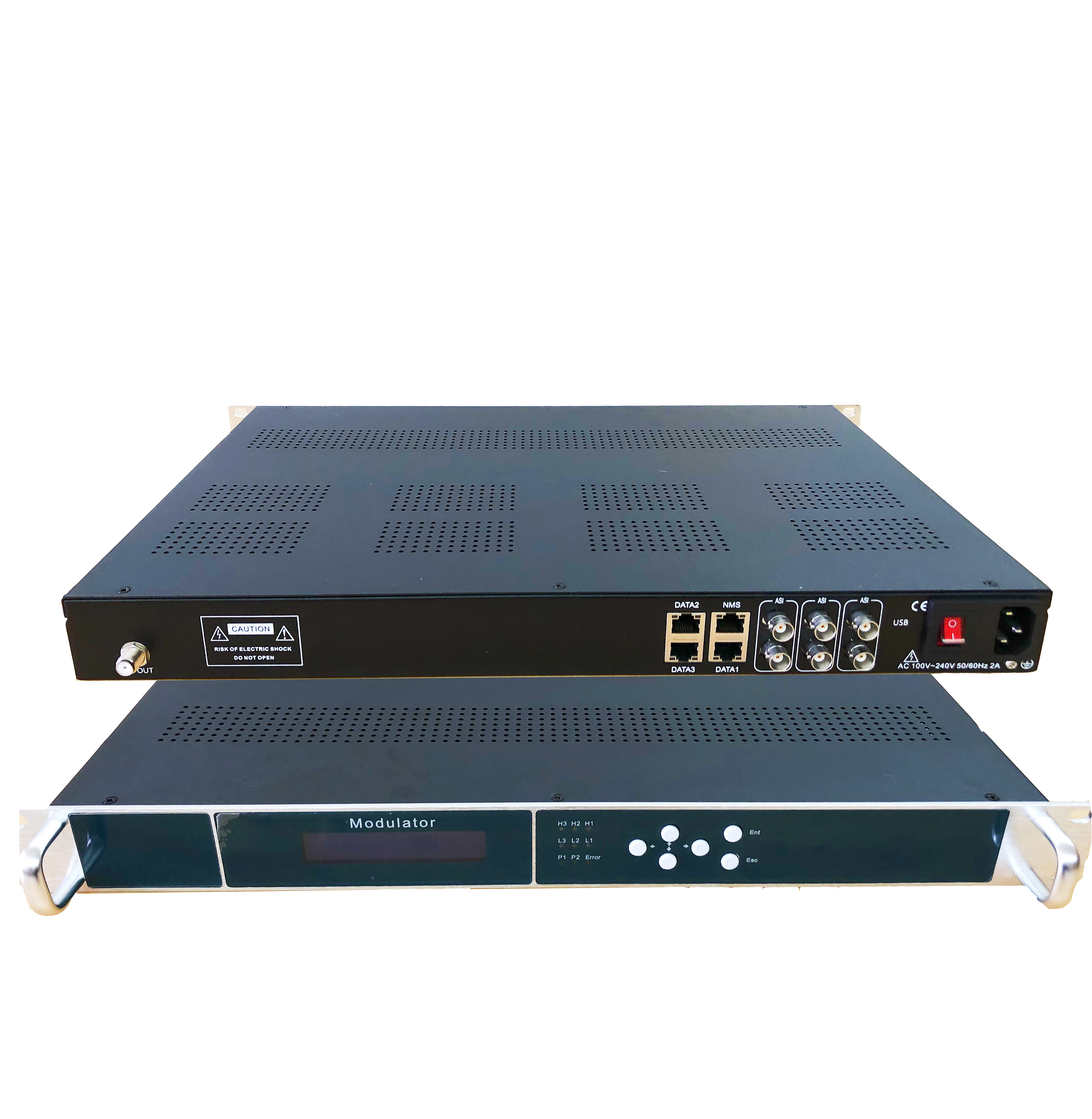

OP-ITM0316 is a cost-effective ISDB modulator developed according to
ISDB (EN300744) standard. It has 128*3 IP inputs.
After multiplexing and modulating process, it gives 16 ISDB non-adjacent
carriers (96MHz~864MHz) output through the RF output interface.
To meet customers’ various requirements, this device is also equipped
with data port for 8 MPTS output over UDP and RTP.
This is very adaptable to newly generation DTV broadcasting system.
Key Features
1. Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol
2. Support 8 MPTS Output
3. Support 16 channel ISDB modulating
4. RF 96~864MHz Any Settings
5. Support 6 Serial TS Input (Any Multiplex)
6. Integrated multiplexing and modulating functions
7. Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
8. Web-based NMS management
