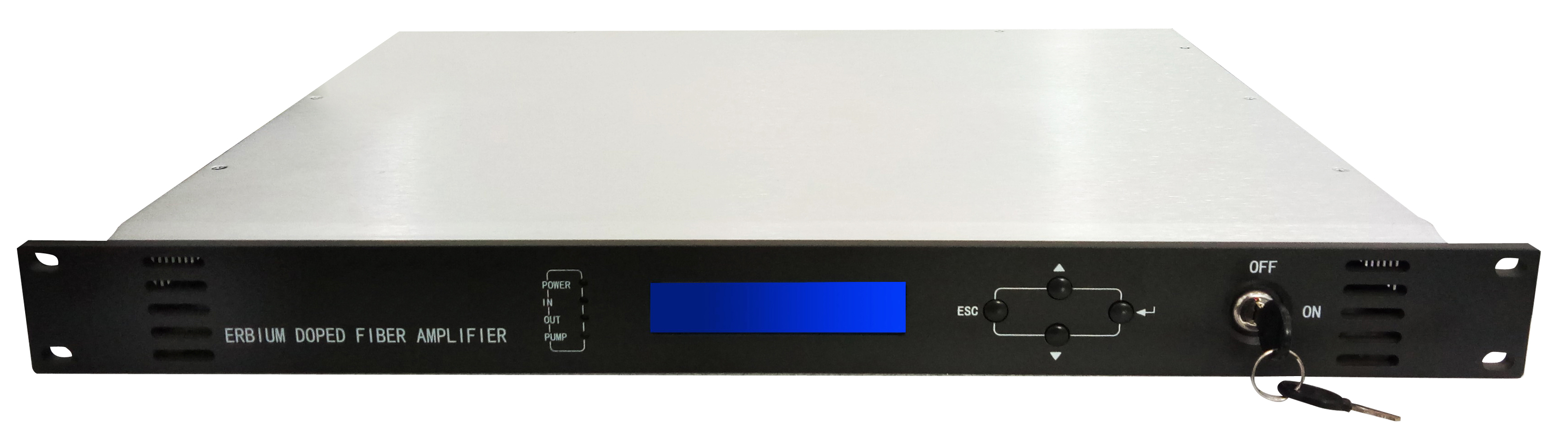

C-Band DWDM Optical Amplifier

OP-EACB50 series


The product has high stable output, high gain flatness and high reliability by using unique APC (automatic power control) and ATC (automatic temperature control).

Product overview
Applications
* C-band 44/80CH DWDM
* Other optical systems
Product features
* Low-noise high flatness design
* Adjustable output power
* High precision ATC keep system stable operation
* Precision AGC / APC circuit keeps the output Power stability
* Strict accordance with Bellcore GR-1312-CORE requirement for design

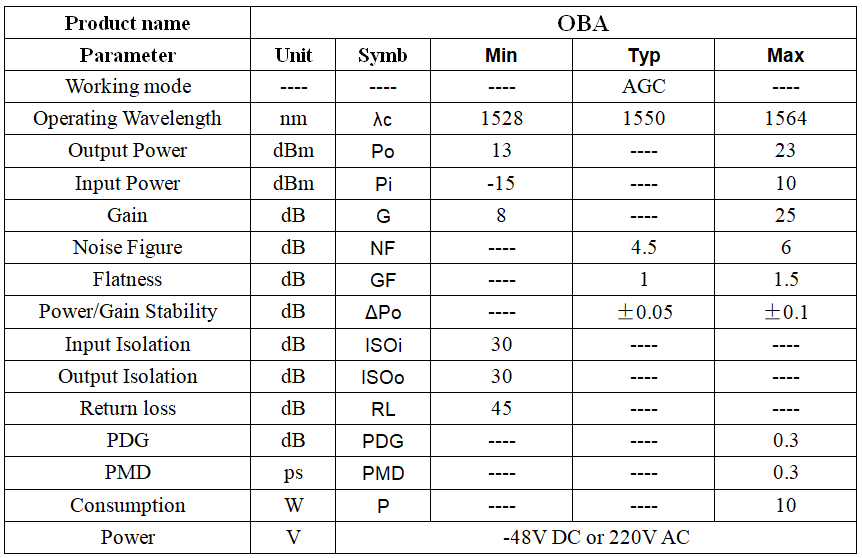

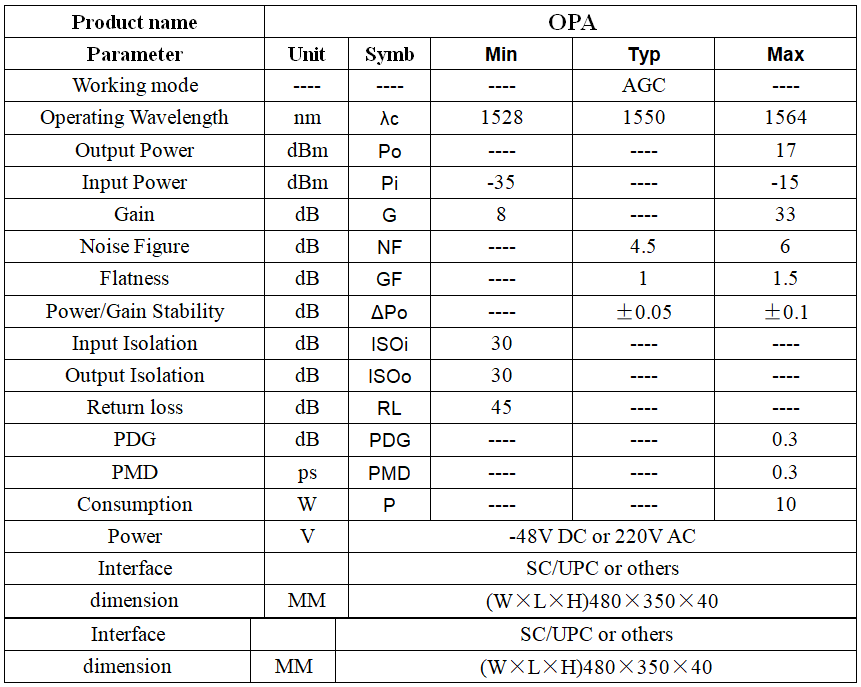

Parameter


Size chart
Download
