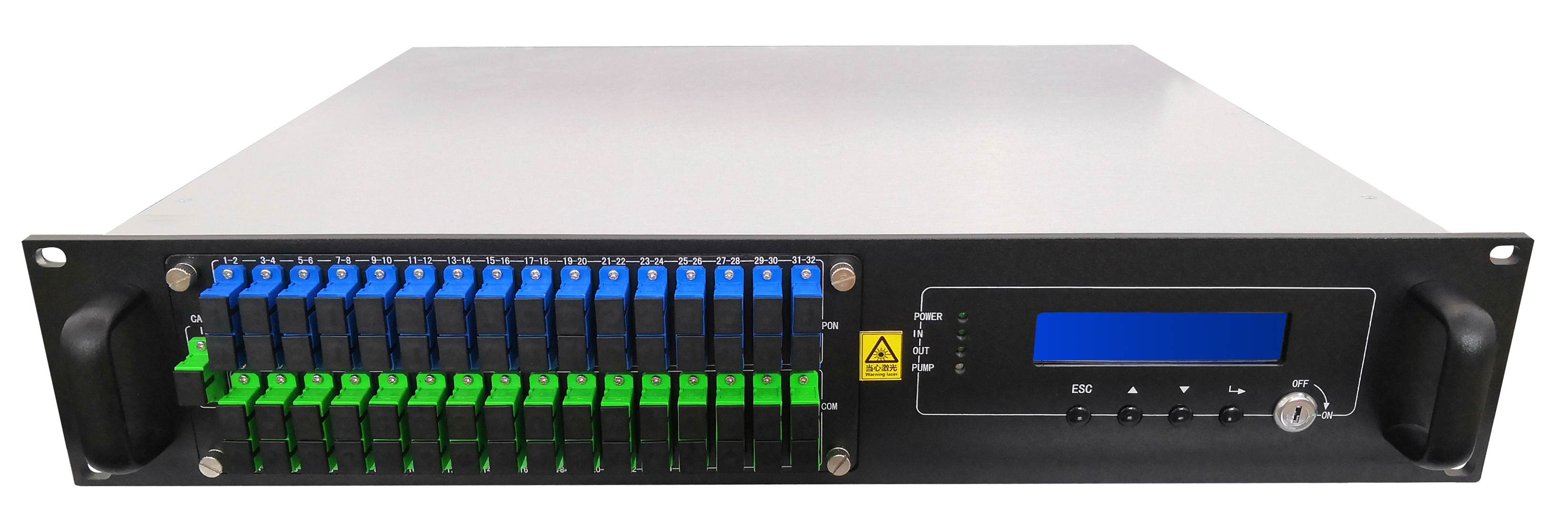

High-power1550nm Fiber Amplifier

OP-1550EAM-B series


* Single-mode fiber 1550 amplification network * FTTH network * CATV network * Long distance trunk network.FTTx PON, max working * wavelength: 1529.16~1563.86nm. * All kinds of SDH/PDH transmission system.

Product overview

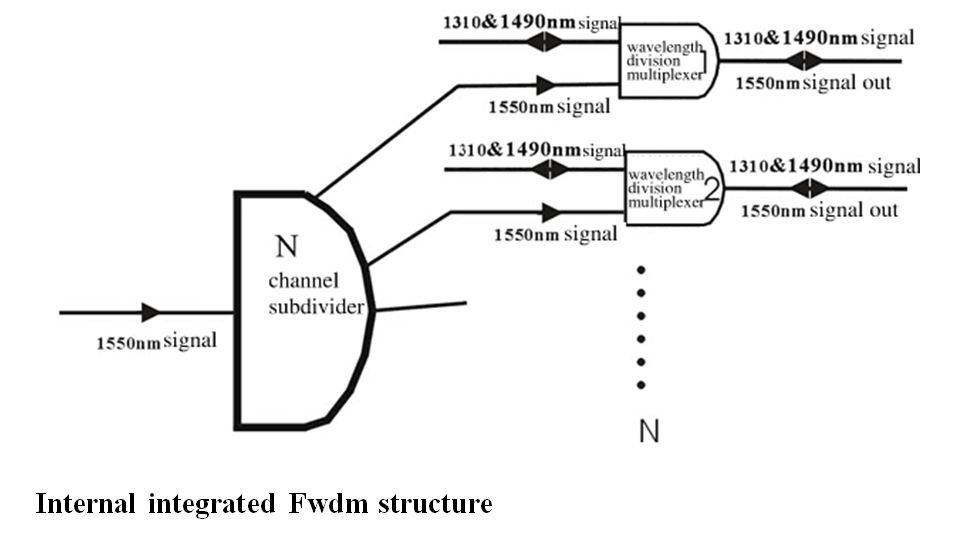

  • Built-in optical fwdm,it can transmit broadband network and CATV together.
  • Adopts Er Yb Codoped double-clad fiber technology;
  • Catv input ports: 1 optional
  • Olt input ports: 4-32 optional
  • Com Output ports: 4-32 optional;
  • Optical output power: total output up to 15W（41dBm）;
  • Low noise figure: <6dB when input is 0dBm;
  • Perfect network management interface, in line with standard SNMP network management;
  • Intelligent temperature control system make the power consumption lower;

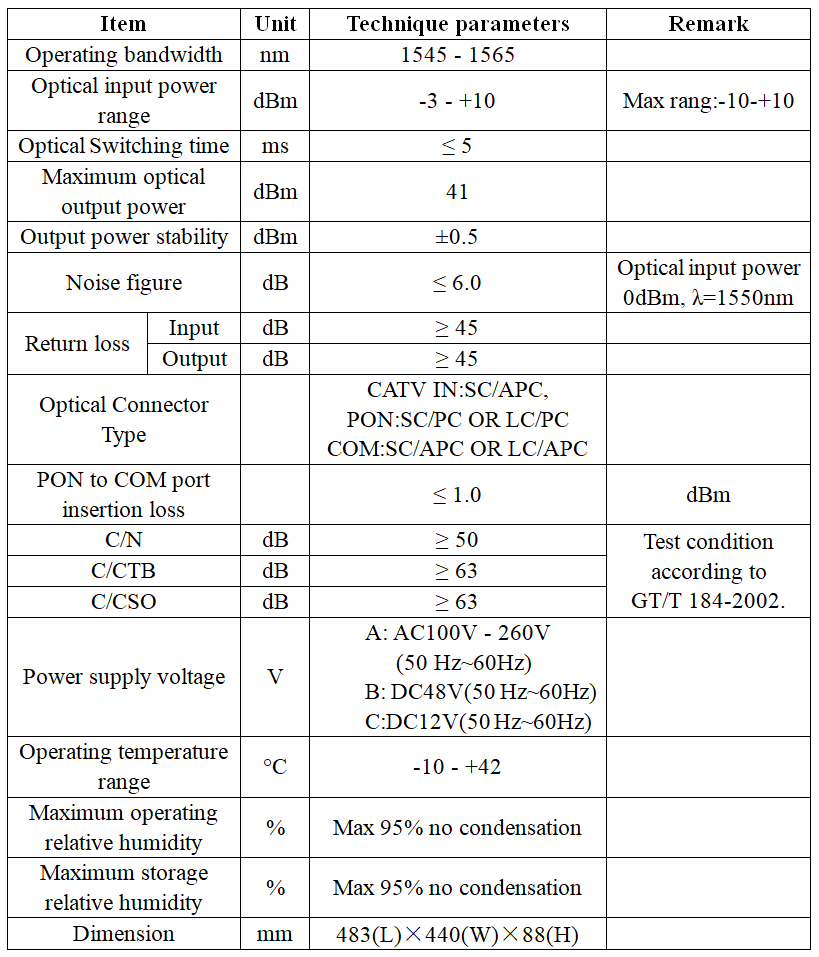

Parameter
