2U High Power Er/Yb Doped Fiber Amplifier

OP-1550EAM series


* Single-mode1550nm transmission network * FTTH network * CATV network

Product overview
  • Using erbium ytterbium co-doped double-clad fiber technology;
  • Total output power: 2-13W (33-41dBm);
  • Built-in low-noise pre-amplifier, EDFA cascading unnecessary, greatly reduces the deterioration of CNR and MER;
  • Output port optional: SC connector 4~16ways optional; LC connector 8~32 ways optional, WDM optional;

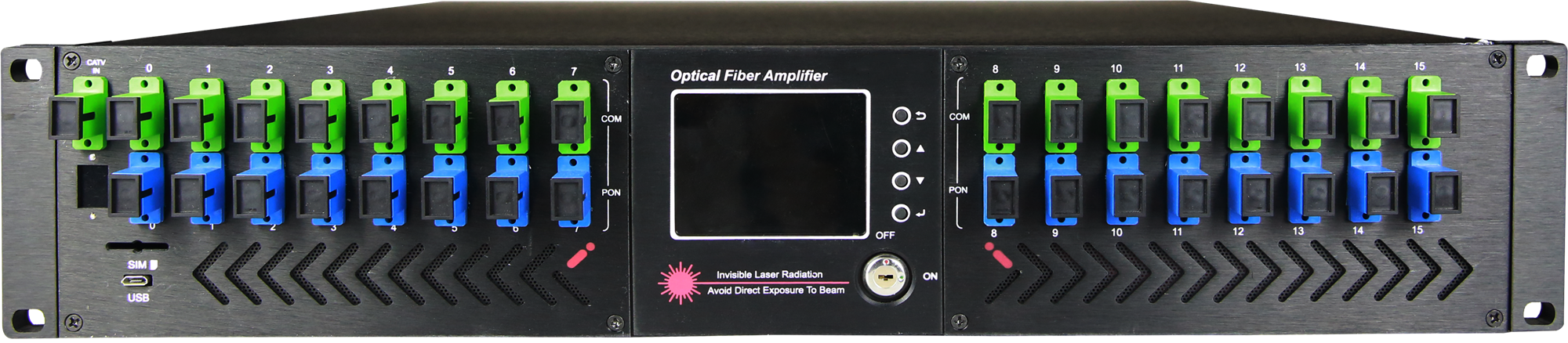

  • The front panel can be flexibly removed and replaced according to the number of output ports;
  • Can add OSW、optical transmitter module, convenient expansion of equipment functions;
  • The front panel key can set up and modify the device performance parameters to meet different network design requirements;
  • Low noise figure: < 5dB @ 0dBm input;
  • The perfect network management interface, conforms to the SNMP network management protocol;
  • Dual power supply hot backup improves the system reliability;
  • The output power +0.5~-4dBm is adjustable;
  • Used 2.8TFT display;
  • With GSM module, it can monitor the device remotely.

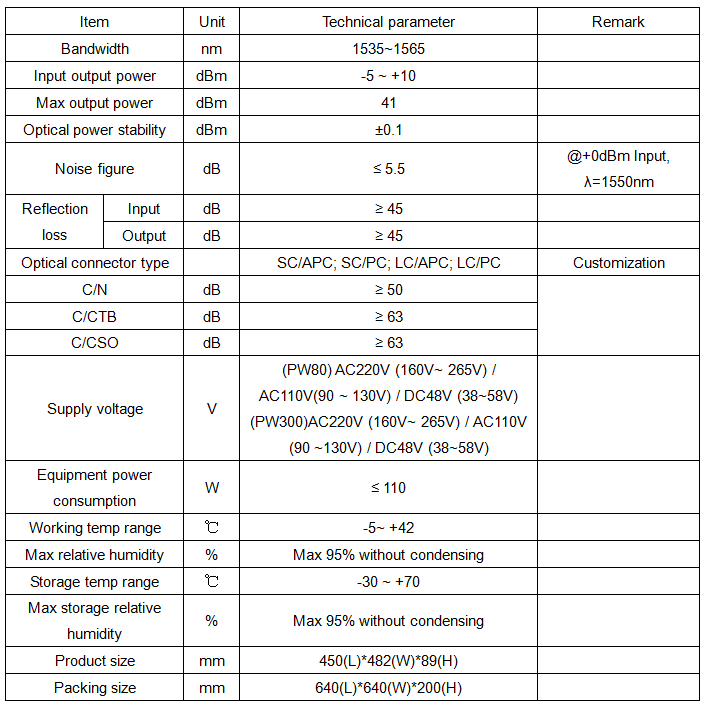

Parameter
