The equipment is designed to meet the requirements of the front-end computer room equipment intensive
installation and development and design of the CATV integrated node.
The double power supply hot backup structure, which is dedicated to the server, can effectively improve the
reliability of the system with the intelligent temperature control system controlled by the microcomputer.
The device is equipped with a standard RJ45 network communication interface (built-in responder),
10/100Mbps adaptive rate, can easily achieve remote network management centralized monitoring, is to
build a high-performance two-way HFC broadband network of the first choice.
Can be equipped with optional power supply: single or dual power supply.
Can be equipped with modules: dual module combination or single module independence.

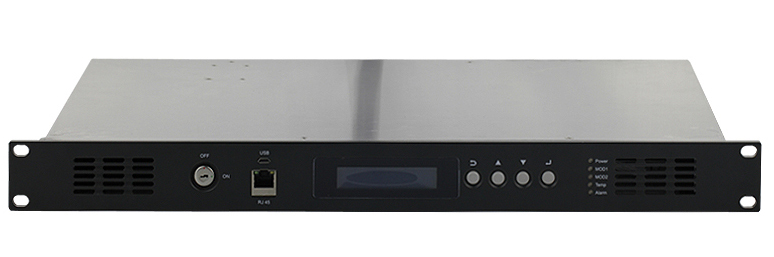

* Compact design, 1U rack can be achieved dual module integration.
* Configuration flexible, on-demand collocation.
* 32 bit ARM architecture of the control unit, the robust CPU can be real-time monitoring of each module within the framework of the operating parameters.
* The utility model is convenient and practical, and can adjust the level and the slope of the target module through the front panel function button or the network management system.
* The structure of the double power supply is used to match the intelligent temperature control system which is controlled by the microcomputer, which can improve the reliability of the system.
* Equipped with the standard RJ45 network management communication interface, it can easily realize the centralized monitoring and control of remote network management.
