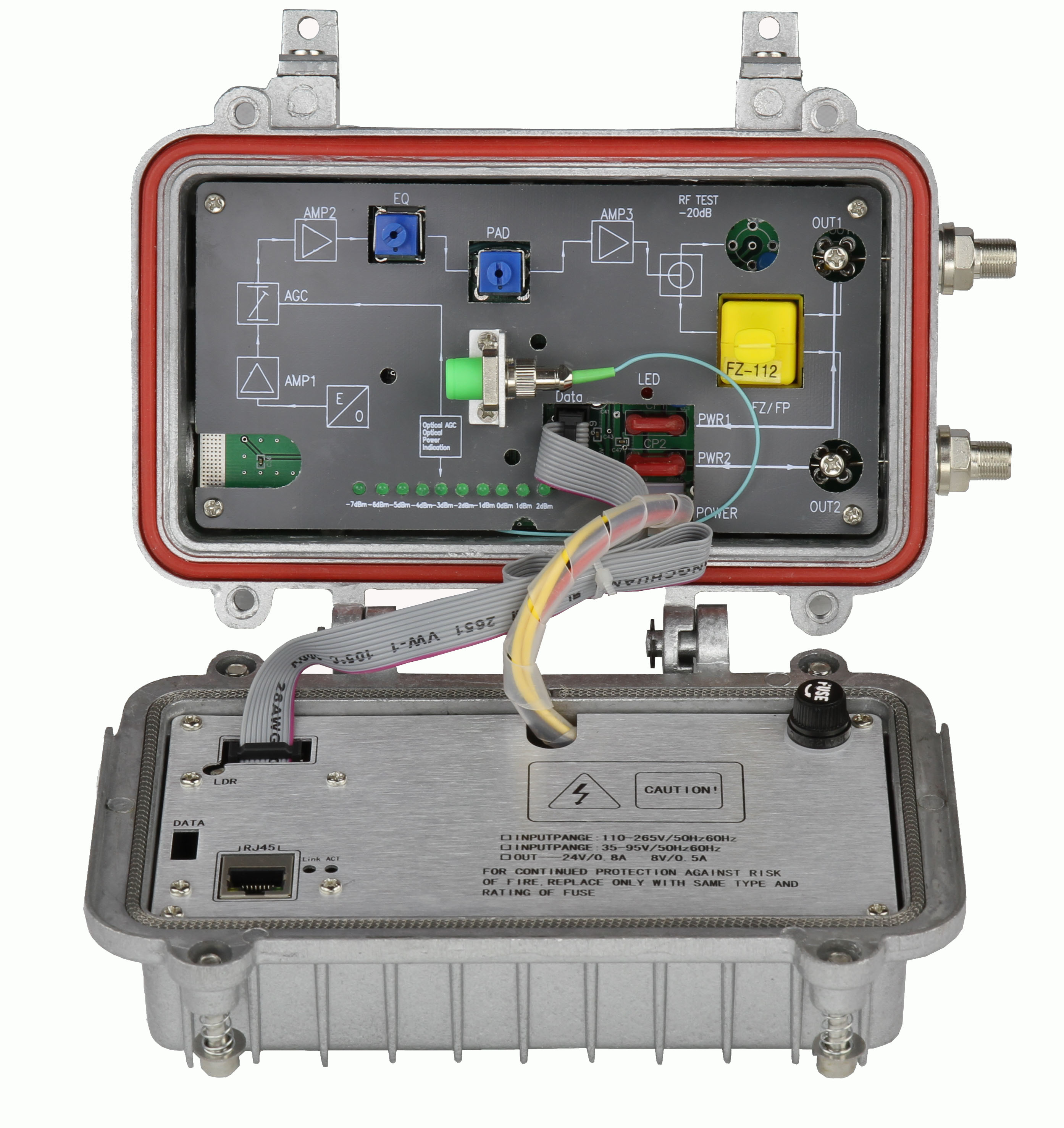

Outdoor Optical Receiver

OP-OR302


OP-OR302 is a high level optical receiver was launched newest by our company.It is special used in EPON network. This machine adopt GaAs for amplifying at the front stage and adopt GaAs power double amplifier module in the back stage.

Product overview
  • High responsibility PIN photoelectric swith tube .
  • Ten bar shape luminescent tube optical power indicate,optical power indicate is more accurate.
  • Optimize the circuit design,SMT+module amplifier classic circuit, photoelectricity signal transmission is more fluency.
  • RF atteniation and equilibrium adopt continuous and adjustable design,engineering test is extremely conveniently.
  • Power double output,high gain and low distortion.
  • Optical AGC control, when the input optical power range is －7～＋2dBm, the  output level basically unchanged.

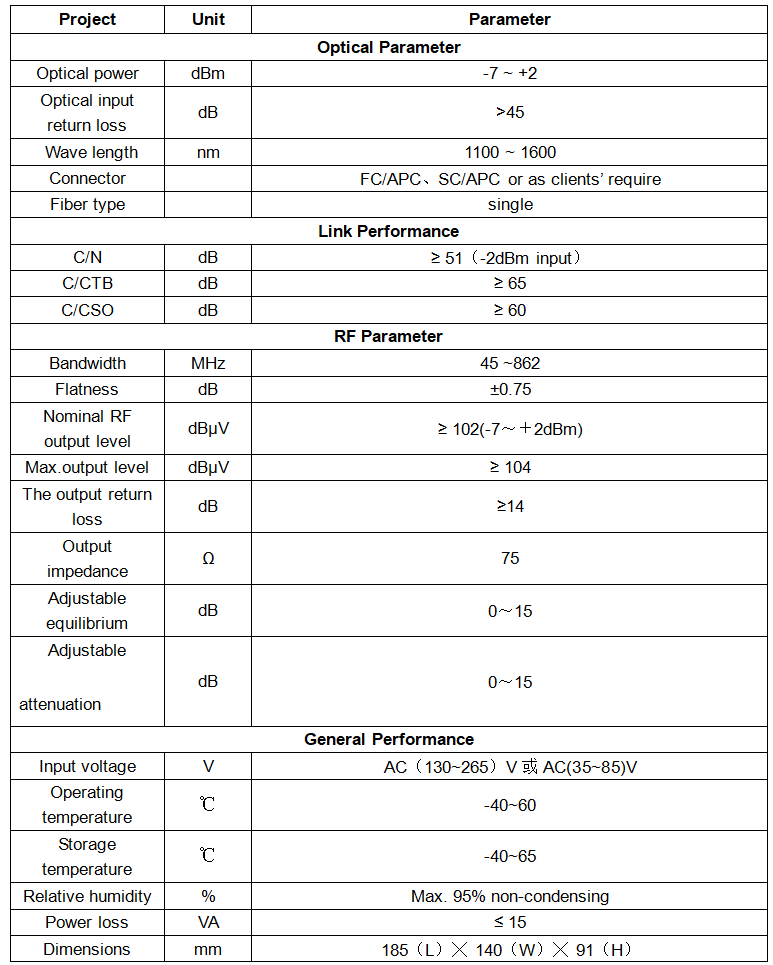

Parameter
