Outdoor Four-way Optical Receiver

OP-OR704

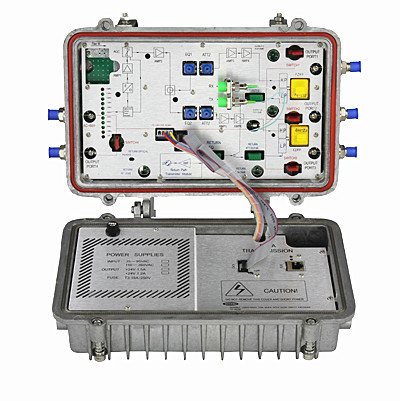

OP-OR704 optical receiver is an outdoor 4 outputs waterproof receiver with SNMP. It is mainly used in the building, community or village with concentrated users and high level multi-outputs distribution network.

Product overview
■ High quality waterproof cast aluminium shell, waterproof level up to IP65 standard.
■ Double shielding panel to ensure good EMC indicators. .
■ The pre-GaAs low-noise amplifier circuit increases the receiving sensitivity of the device.
■ The AGC control range is + 2~8dBm and the output is basically unchanged.
■ Accurate detection circuit can real-time display the output power through LED indicator accurately
■ Splitter and Tap can be changed
■ AC-60v products with independent power supply.
■ Two-stage attenuation, two-stage equilibrium, network regulation flexibly.
■ Return path can be added or can be reserved.
■ With SNMP.

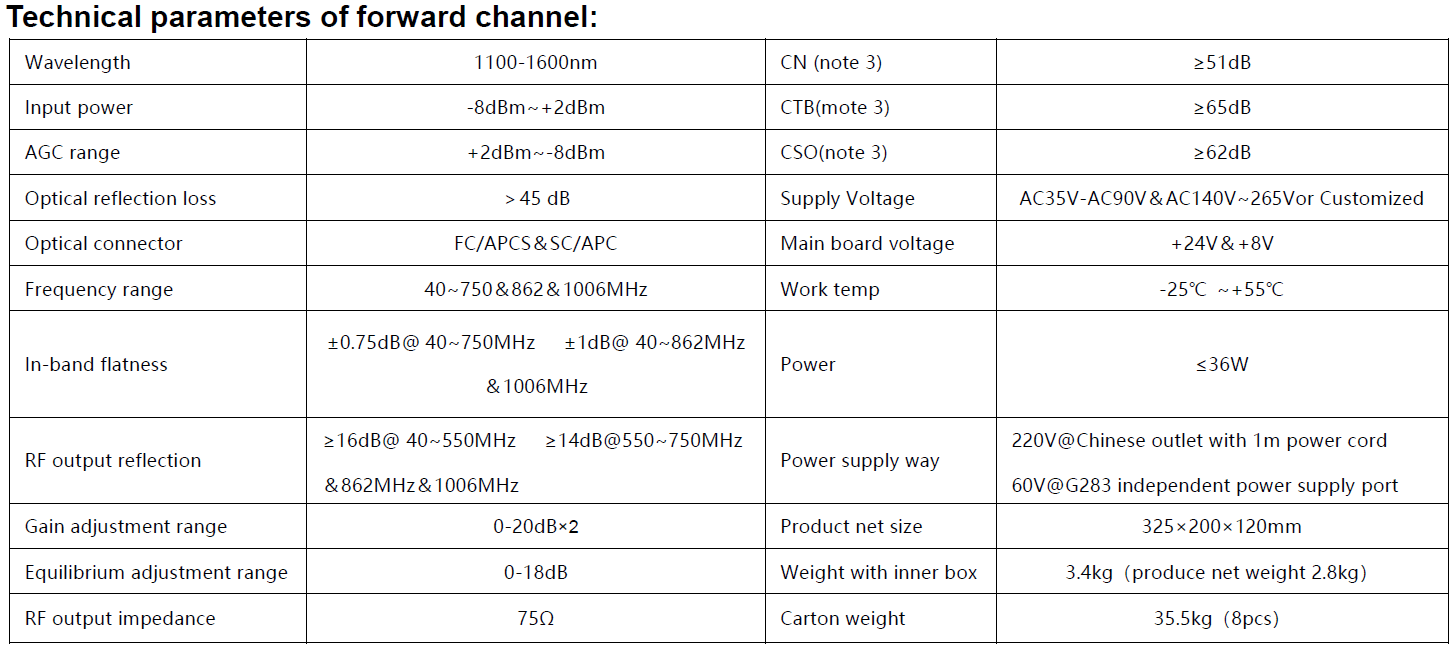

Parameter
Size chart
Download
