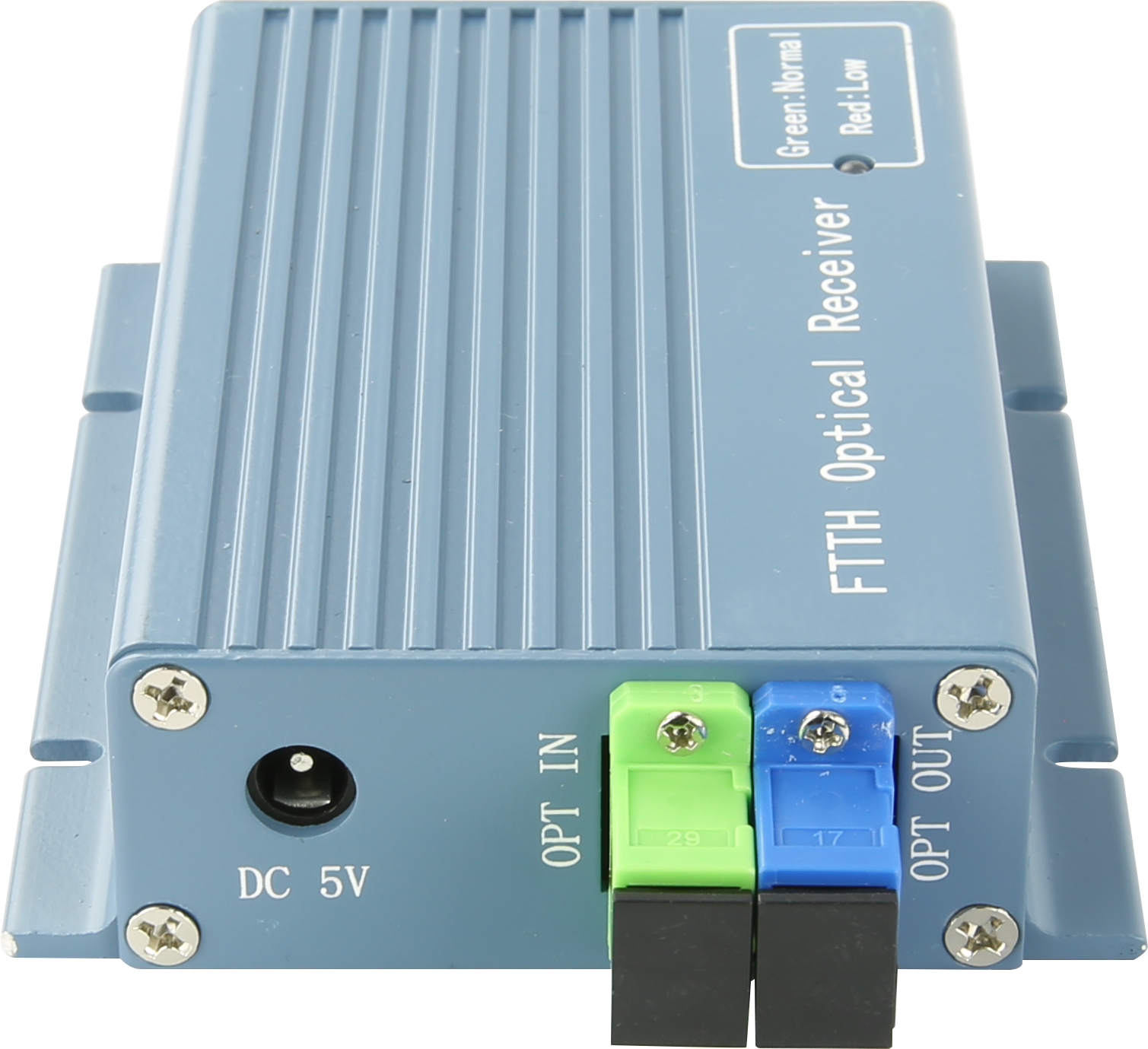

FTTH Optical Receiver


It is specifically designed for CATV HFC network with FTTH structure. Its main feature is low power consumption, AGC optical constant level output, small volume and high reliability.

Product overview
  • Low noise, high power, low power consumption and high cost performance
  • Excellent flatness in the bandwidth
  • Output attenuation control
  • With CWDM built-in, suitable for single fiber three wave system, RFTV working wavelength 1550nm and pass through wavelength 1310/1490nm.
  • Can easily connect the ONU for EPON and GPON.

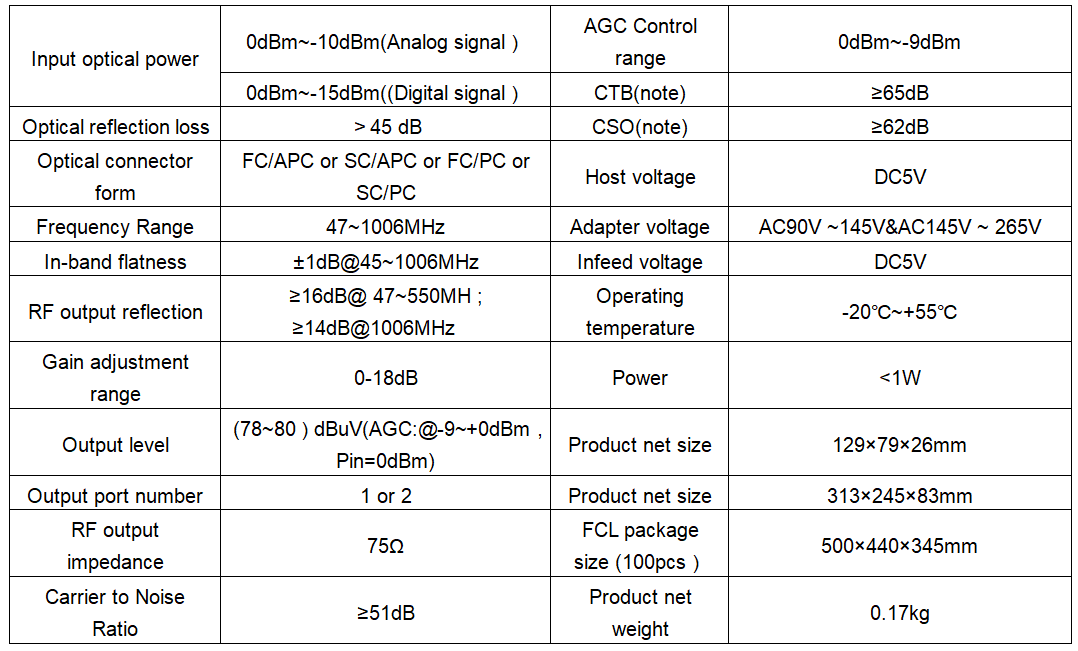

Size chart
