High quality aluminum profile shell with good heat dissipation.
RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception at a minimum, and the -15dBm reception of an analog signal at a minimum.
With light input AGC (AGC range 0~-9dBm).
Low-power design, using high-efficiency switching power supply to ensure high reliability and high stability of the power supply. The overall power consumption is less than 1W, with a light detection circuit.
Multi-stage lightning protection devices (TVS transient suppression diodes), and lightning protection systems are tight to ensure safe operation of the equipment.

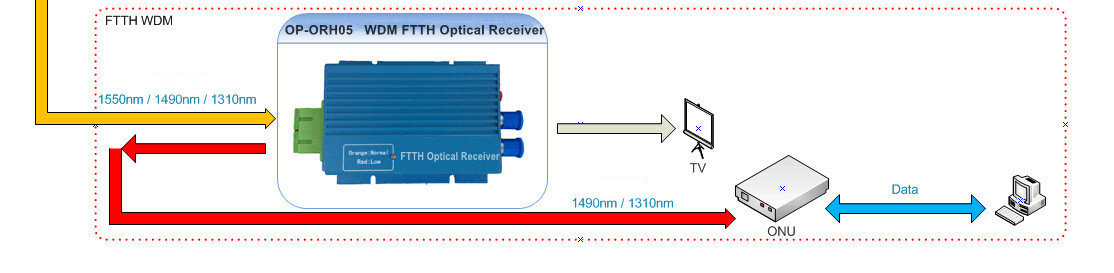

Built-in WDM can realize single-fiber home (1490/1310/1550nm&1577/1270/1550nm) tri-network convergence applications.

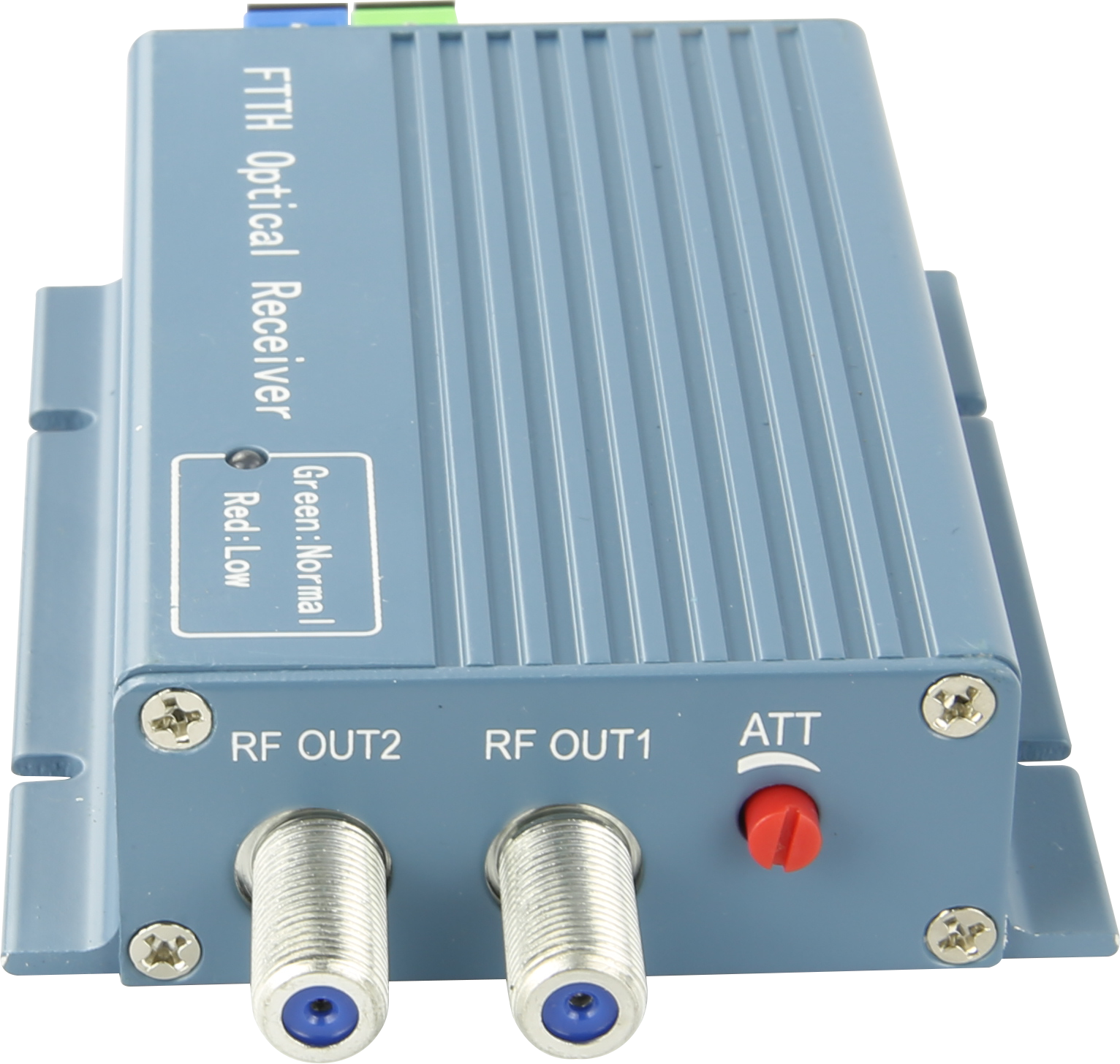

The output gain is manually adjustable (0~18dB) and the output level is >80dBuV.
SC/APC or FC/APC or custom optical connectors, metric or imperial RF interfaces.
It can realize the power supply mode of output feed.
